Acoustics of the saxophone |
Bb saxophone |
multiphonic
|
![]() |
![]() |
![]() |
![]() |
||||||||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
![]() |
Fingering Acoustic schematic Non-specialist introduction
to acoustic impedance Notes are the written pitch. |

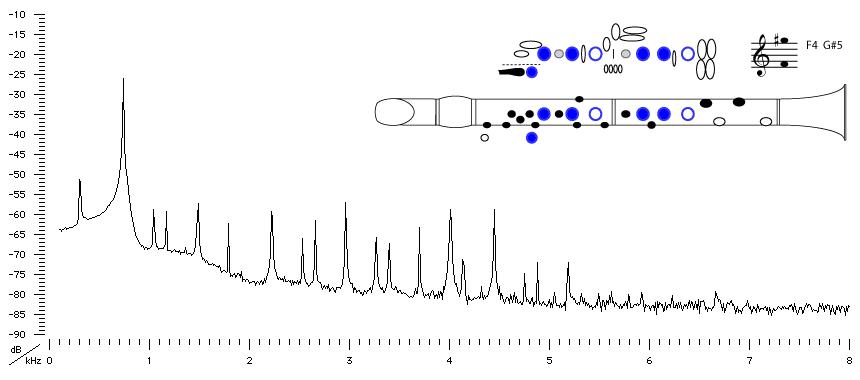

Sound spectrum
of a Bb saxophone
played using fingering for the multiphonic F4 with G#5. Note that F4 plays flat.
For more explanation, see
Introduction to saxophone acoustics
You can hear the multiphonic F4 with G#5
played.
