| Acoustics of the saxophone |
Bb tenor saxophone |
A#4 |
|
 |
 |
 |
 |
||||||||
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
|
Fingering Acoustic schematic Non-specialist introduction
to acoustic impedance Notes are the written pitch. |

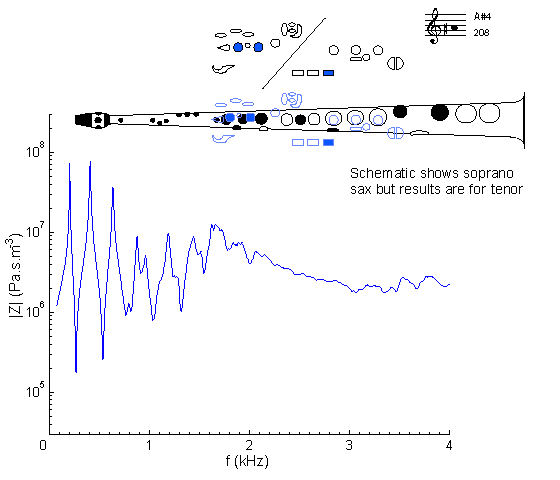

At frequencies below about 1 kHz, this curve looks rather like that for A4, but raised in frequency. At higher frequencies, however, the situation is complicated by the cut-off frequency. Here, the 1 kHz cutoff weakens the third peak. The first peak can be reduced in magnitude and shifted in frequency using a register hole (operated by the octave key): see A#5.
For general comments about the first register, see A#3, which can also play A#4 (and F5, A#5 etc) by bugling. Compare with the impedance spectrum for a soprano sax on written A#4: same fingering but sounding one octave higher.

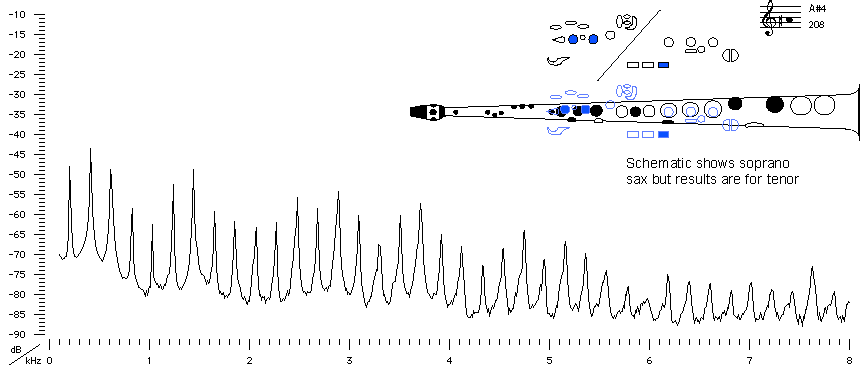

Sound spectrum
of a Bb tenor saxophone
played using fingering for A#4.
For more explanation, see
Introduction to saxophone acoustics.
You can hear A#4
played.

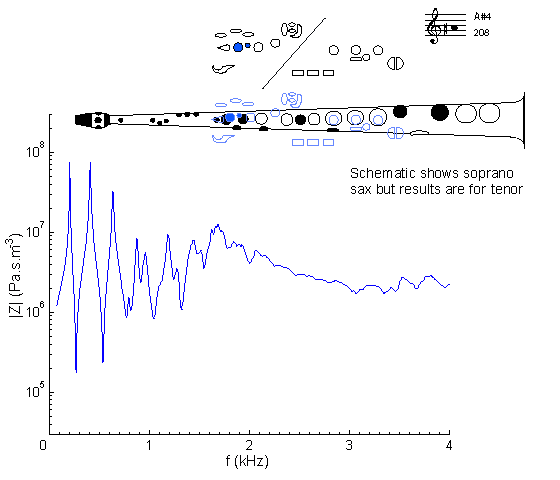

Alternative Fingering |
tenor saxophone |
 |
Fingering Acoustic schematic Non-specialist introduction
to acoustic impedance Notes are the written pitch. |

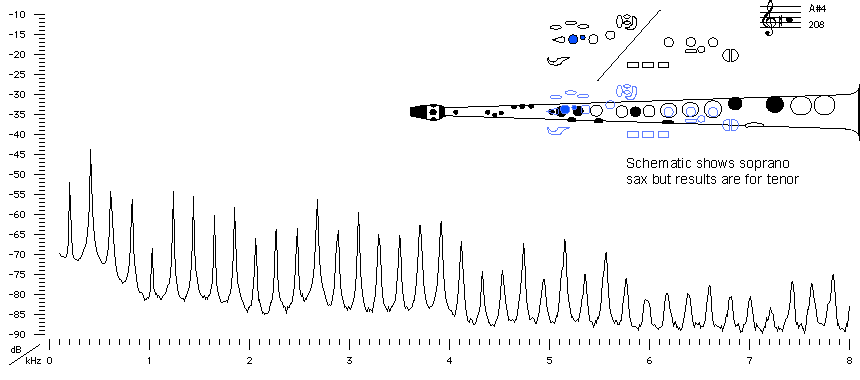

You can hear A#4
played with alternative fingering.

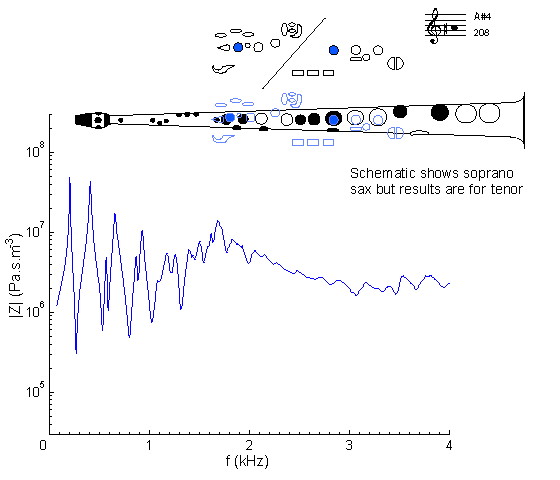

2nd alternative Fingering |
tenor saxophone |
 |
Fingering Acoustic schematic Non-specialist introduction
to acoustic impedance Notes are the written pitch. |

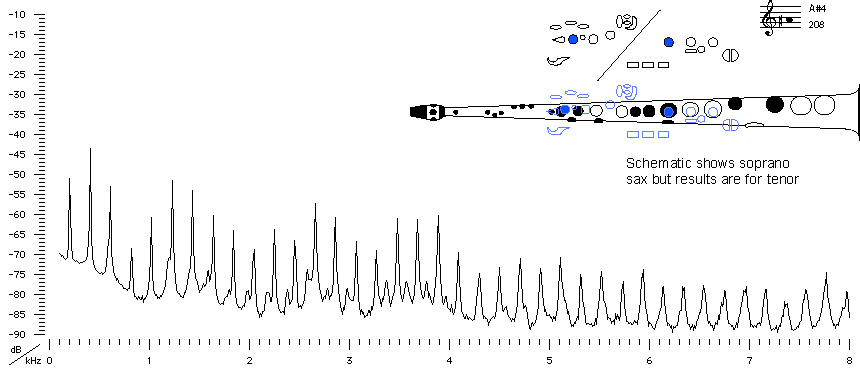

You can hear Asharp4
played with 2nd alternative fingering.
|
Contact:
Joe Wolfe
/ J.Wolfe@unsw.edu.au |
a key depressed
a key not depressed
a hole covered
a hole uncovered
a
part of the mechanism that is not normally touched
