Bb tenor saxophone
F6
| Acoustics of the saxophone |
Bb tenor saxophone |
F6 |
|
 |
 |
 |
 |
||||||||
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
|
Fingering Acoustic schematic Non-specialist introduction
to acoustic impedance Notes are the written pitch. |

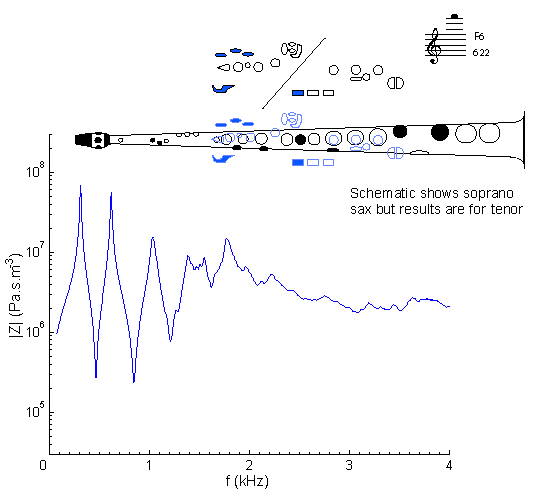

In the acoustical sense, this note is still in the second register – it plays (normally) at the second peak on the impedance spectrum. This fingering uses a register hole. This causes a leak in the bore that weakens the first impedance peak (although both peaks will play comfortably with different embouchures). Above the second peak, the curve is irregular: see the discussion in cut-off frequency.
Compare with the impedance spectrum for a soprano sax on written F6: same fingering but sounding one octave higher.

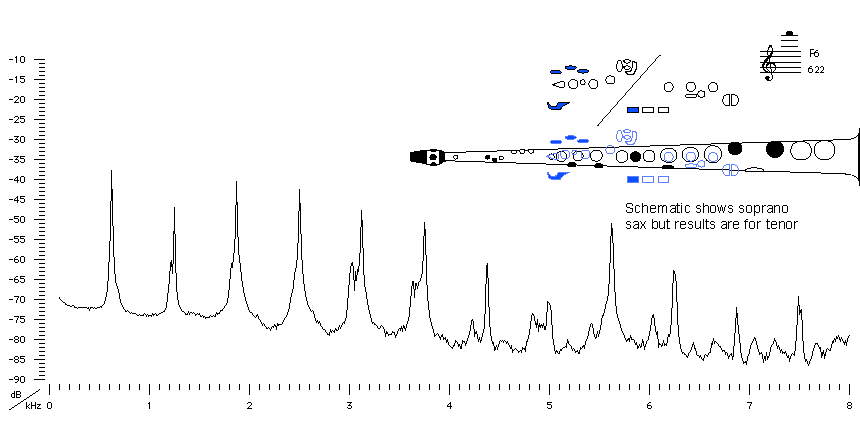

Sound spectrum
of a Bb tenor saxophone
played using fingering for F6.
For more explanation, see
Introduction to saxophone acoustics.
You can hear F6
played.

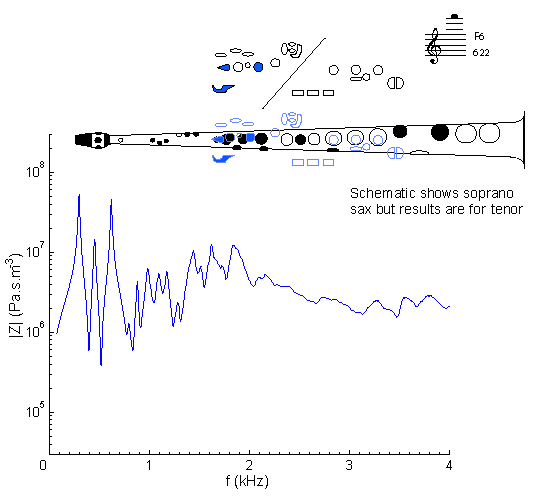

Alternative Fingering |
tenor saxophone |
 |
Fingering Acoustic schematic Non-specialist introduction
to acoustic impedance Notes are the written pitch. |

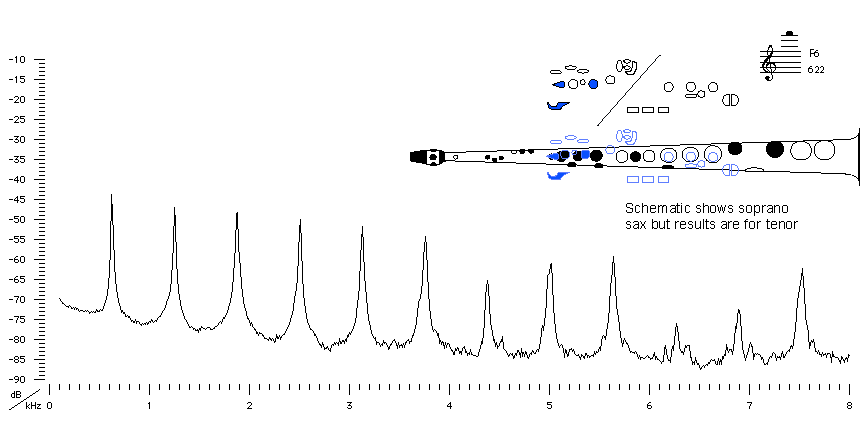

You can hear F6
played with alternative fingering.
|
Contact:
Joe Wolfe
/ J.Wolfe@unsw.edu.au |
a key depressed
a key not depressed
a hole covered
a hole uncovered
a
part of the mechanism that is not normally touched
