Acoustics of the saxophone

Bb tenor saxophone

F#7

Music Acoustics UNSW

Conventional Fingering

Impedance

Fingering
a key depressed
a key not depressed
a hole covered
a hole uncovered
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to saxophone acoustics

Notes are the written pitch.
Frequencies are the sounding frequency, for Bb saxophone.
Unless otherwise stated, the impedance spectrum is for a Bb saxophone.

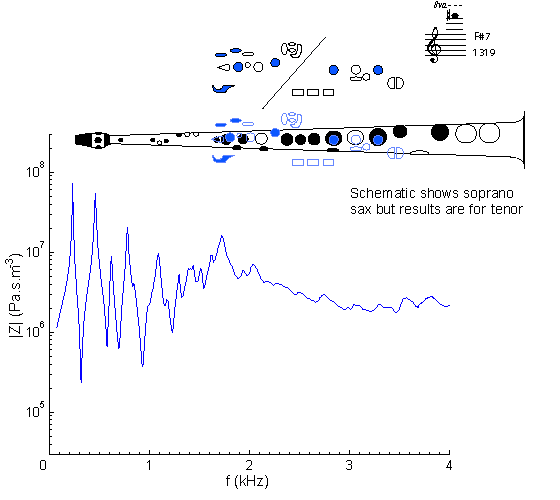

Impedance spectrum of a Bb saxophone measured using fingering for F#7.

This is the twelth note in the altissimo or very high range. It is not a member of a simple register: it plays at the seventh impedance peak, a cross fingered note whose operating peak falls above the cut-off frequency and so cannot readily be described in terms of an effective length.

The weakness of this peak (due to the relatively large cone angle of the saxophone) explains why notes in this range are hard to play and require the player to assist the weak impedance peak of the bore with a strong impedance peak of the vocal tract. See this page for an explanation and some interesting results.

Sound

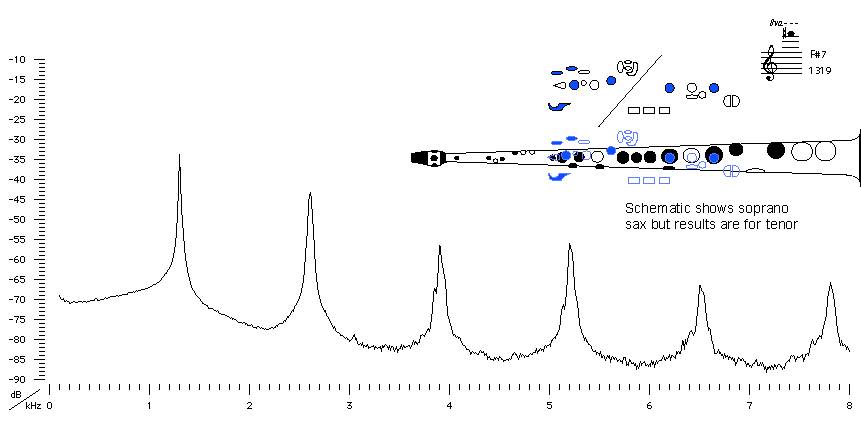

Sound spectrum of a Bb saxophone played using fingering for F#7.
For more explanation, see Introduction to saxophone acoustics.

This is the highest tenor  note for which we have a sound recording in this series.

Sound Clip

You can hear F#7 played.
