Bb tenor saxophone
C#7
| Acoustics of the saxophone |
Bb tenor saxophone |
C#7 |
|
 |
 |
 |
 |
||||||||
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
|

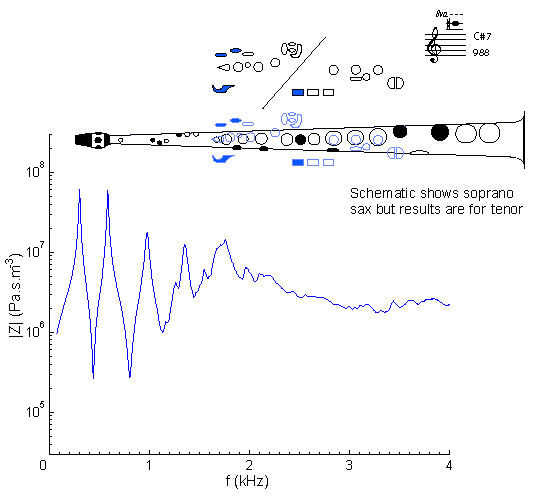

Fingering Acoustic schematic Non-specialist introduction
to acoustic impedance Notes are the written pitch. |
This is the seventh note in the altissimo or very high range, and plays at the third peak. The weakness of peaks in this range (due to the relatively large cone angle of the saxophone) explains why notes in this range are hard to play and require the player to assist the weak impedance peak of the bore with a strong impedance peak of the vocal tract. See this page for an explanation and some interesting results.

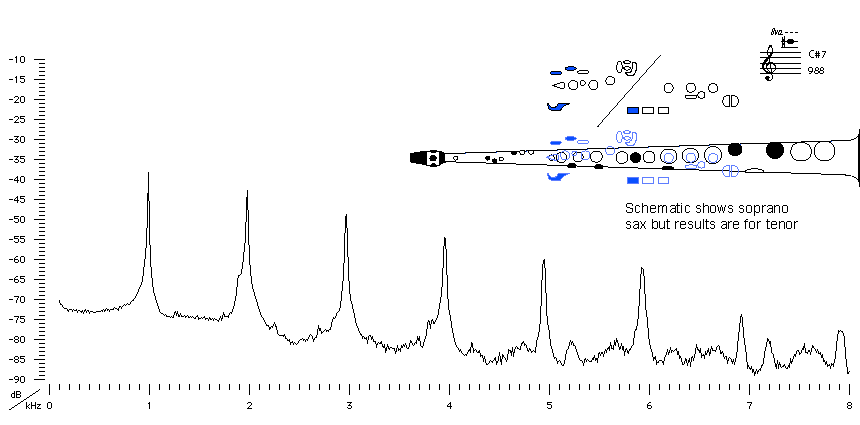

Sound spectrum
of a Bb tenor saxophone
played using fingering for C#7.
For more explanation, see
Introduction to saxophone acoustics.
You can hear C#7
played.
|
Contact:
Joe Wolfe
/ J.Wolfe@unsw.edu.au |
a key depressed
a key not depressed
a hole covered
a hole uncovered
a
part of the mechanism that is not normally touched
