Bb tenor saxophone

D#7

Conventional Fingering

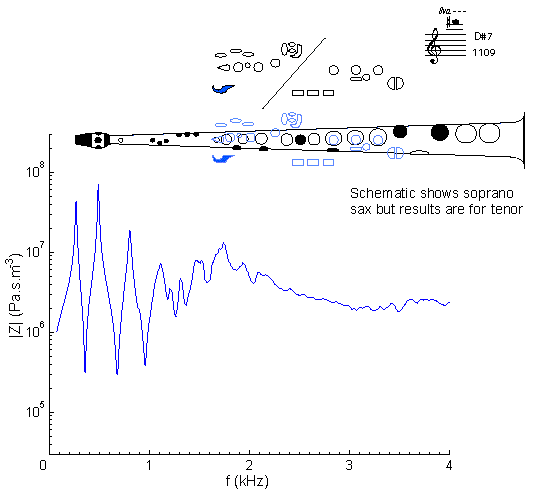

Impedance

Fingering a key depressed a key not depressed a hole covered a hole uncovered a part of the mechanism that is not normally touched Details in fingering legend. Acoustic schematic a closed tone hole an open tone hole Non-specialist introduction to acoustic impedance Non-specialist introduction to saxophone acoustics Notes are the written pitch. Frequencies are the sounding frequency, for Bb saxophone. Unless otherwise stated, the impedance spectrum is for a Bb saxophone.

This is the ninth note in the altissimo or very high range and plays at the fourth impedance peak. The fingering shown here for playing it is the same as that for C#6.

The weakness of this peak (due to the relatively large cone angle of the saxophone) explains why notes in this range are hard to play and require the player to assist the weak impedance peak of the bore with a strong impedance peak of the vocal tract. See this page for an explanation and some interesting results.

Sound

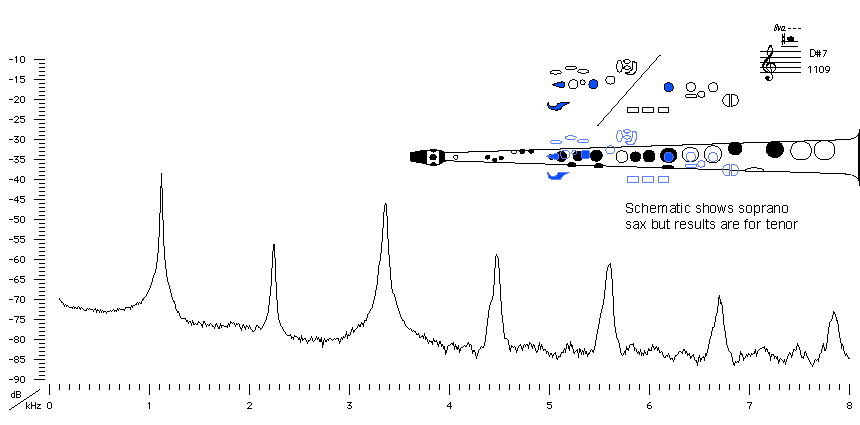

Sound spectrum of a Bb tenor saxophone played using fingering for D#7.
For more explanation, see Introduction to saxophone acoustics.

Sound Clip

You can hear D#7 played.
