Bb clarinet
F#4
| Acoustics of the clarinet |
Bb clarinet |
F#4 |
|
 |
 |
||||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
|

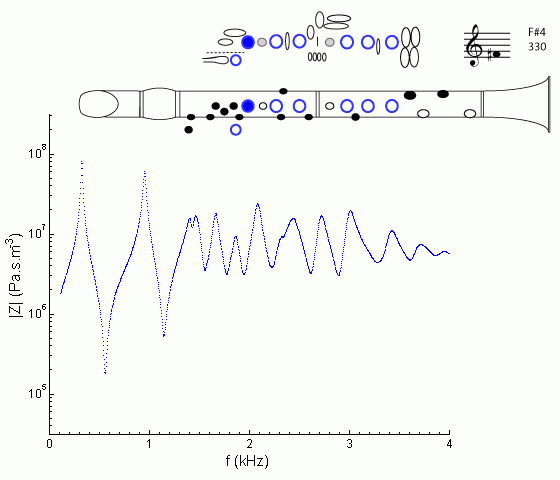

Fingering Acoustic schematic Non-specialist introduction
to acoustic impedance Notes are the written pitch. |
For general comments about the throat register, see E4.

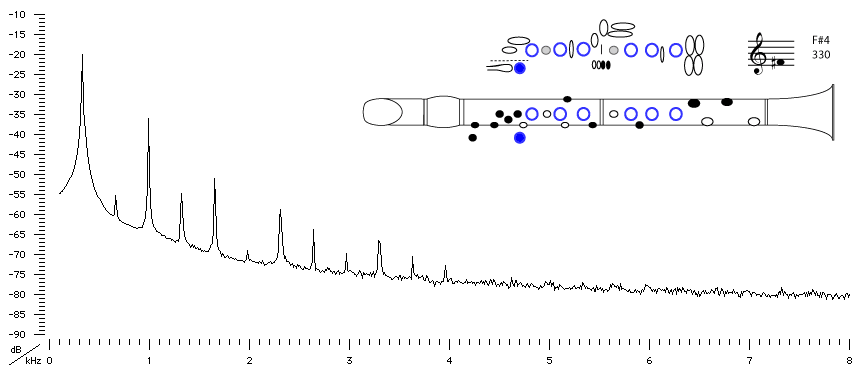

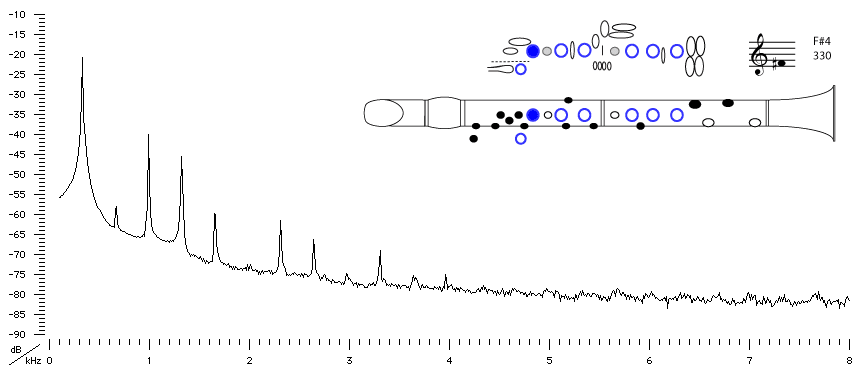

Sound spectrum
of a Bb clarinet
played using fingering for F#4.
For more explanation, see
Introduction to clarinet acoustics
You can hear F#4
played.

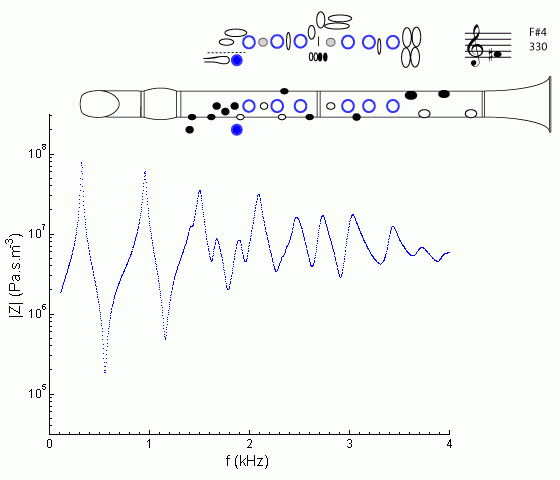

Alternative Fingering |
Bb clarinet |
 |
Fingering Acoustic schematic Non-specialist introduction
to acoustic impedance Notes are the written pitch. |
You can hear F#4
played with alternative fingering.
|
Contact:
Joe Wolfe
/ J.Wolfe@unsw.edu.au |
a key depressed
a key not depressed
a hole covered
a hole uncovered
a
part of the mechanism that is not normally touched
