Acoustics of the clarinet

Bb clarinet

D4

Music Acoustics UNSW

index
E3 F3 F#3 G3 G#3 A3 A#3 B3
C4 C#4 D4 D#4 E4 F4 F#4 G4 G#4 A4 A#4 B4
C5 C#5 D5 D#5 E5 F5 F#5 G5 G#5 A5 A#5 B5
C6 C#6 D6 D#6 E6 F6 F#6 G6 G#6 A6 A#6 B6
C7 C#7

Conventional Fingering

Impedance

Fingering
a key depressed
a key not depressed
a hole covered
a hole uncovered
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to clarinet acoustics

Notes are the written pitch.
Frequencies are the sounding frequency, for Bb clarinet.
Unless otherwise stated, the impedance spectrum is for a Bb clarinet.

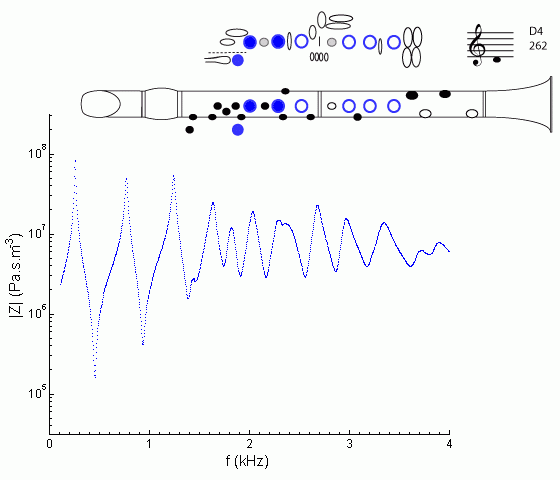

Impedance spectrum of a Bb clarinet measured using fingering for D4.

Sound

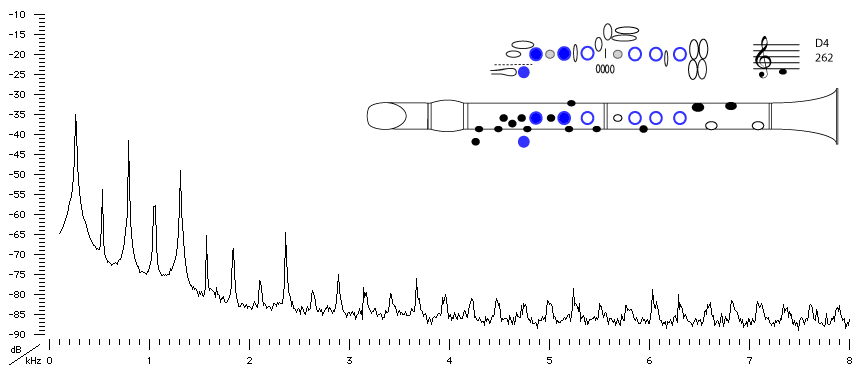

Sound spectrum of a Bb clarinet played using fingering for D4.
For more explanation, see Introduction to clarinet acoustics

Sound Clip

You can hear D4 played.

Alternative Fingering

Bb clarinet

Impedance

Fingering
a key depressed
a key not depressed
a hole covered
a hole uncovered
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to clarinet acoustics

Notes are the written pitch.
Frequencies are the sounding frequency, for Bb clarinet.
Unless otherwise stated, the impedance spectrum is for a Bb clarinet.

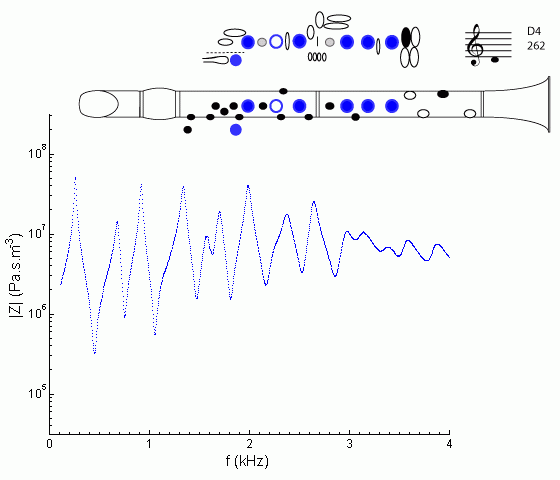

Impedance spectrum of a Bb clarinet measured using covered fingering for D4.

Note that this very cross-fingered arrangement produces an impedance spectrum with no regular spacing of peaks below the cut-off frequency. Consequently, the sound spectrum shows a strong fundamental but weak higher harmonics, and no systematic difference between even and odd harmonics.

Sound

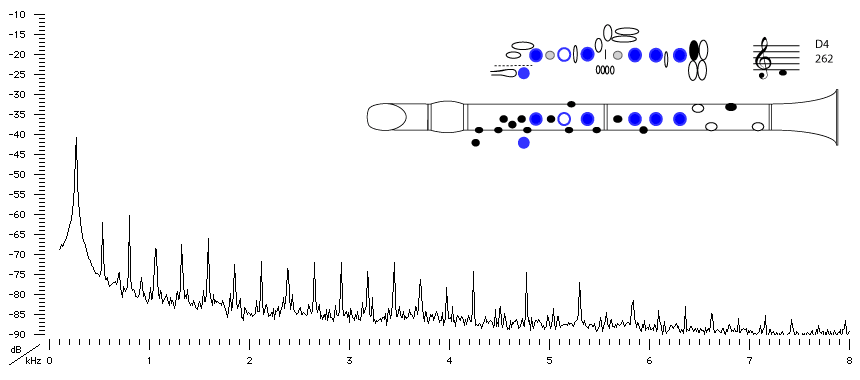

Sound spectrum of a Bb clarinet played using covered fingering for D4.
For more explanation, see Introduction to clarinet acoustics

Sound Clip

You can hear D4 played with covered fingering.
