Acoustics of the clarinet

Bb clarinet

C5

Music Acoustics UNSW

index
E3 F3 F#3 G3 G#3 A3 A#3 B3
C4 C#4 D4 D#4 E4 F4 F#4 G4 G#4 A4 A#4 B4
C5 C#5 D5 D#5 E5 F5 F#5 G5 G#5 A5 A#5 B5
C6 C#6 D6 D#6 E6 F6 F#6 G6 G#6 A6 A#6 B6
C7 C#7

Impedance

Fingering
a key depressed
a key not depressed
a hole covered
a hole uncovered
a part of the mechanism that is not normally touched
Details in fingering legend.

Acoustic schematic
a closed tone hole
an open tone hole

Non-specialist introduction to acoustic impedance
Non-specialist introduction to clarinet acoustics

Notes are the written pitch.
Frequencies are the sounding frequency, for Bb clarinet.
Unless otherwise stated, the impedance spectrum is for a Bb clarinet.

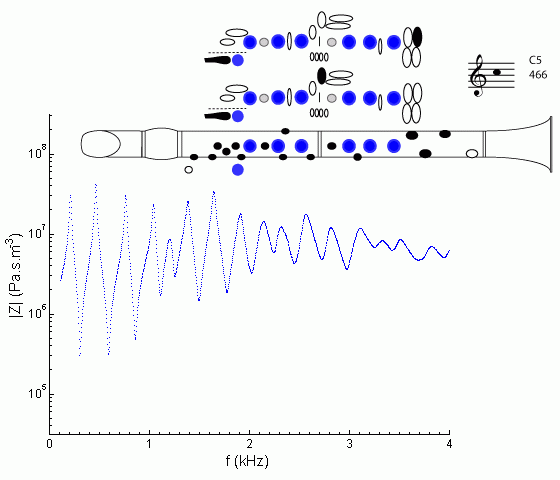

Impedance spectrum of a Bb clarinet measured using fingering for C5.

Note how similar this spectrum is to that for F3. (Of course, the clarinet overblows a 12th.) The only substantial difference is the reduction in the first peak. The purpose of the speaker key is just that: to destroy the fundamental resonance so that the instrument will not 'drop down' to the lower register. See register hole for details.

At frequencies below about 1.1 kHz, this curve looks rather like that for B4, but raised in frequency because the tube is effectively shorter because of the open tone hole (see tone holes). At higher frequencies, however, the waves propagate past the open tone hole with greater ease, and the situation is more complicated, which gives rise to the irregular shape around 1.2 kHz. At the highest frequencies shown here, the waves 'hardly notice' the open tone hole and the curve is very much like that for B4, and not raised in frequency. (See cut-off frequencies.)

For a general discussion of the clarino register, see the description on B4.

Sound

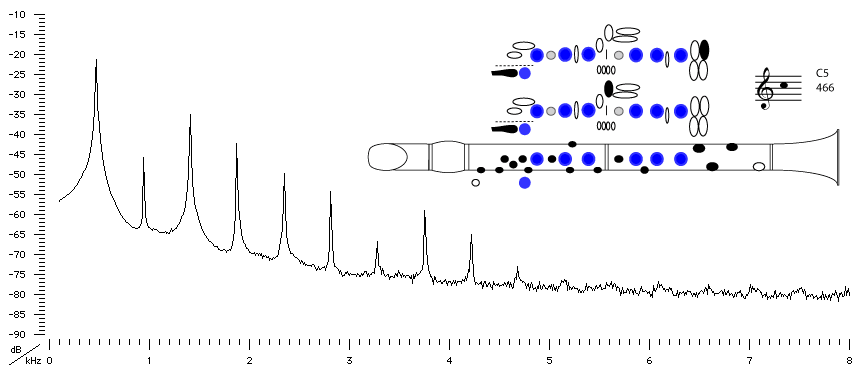

Sound spectrum of a Bb clarinet played using fingering for C5.
For more explanation, see Introduction to clarinet acoustics

Sound Clip

You can hear C5 played.
