Bb soprano saxophone
E7
| Acoustics of the saxophone |
Bb soprano saxophone |
E7 |
|
 |
 |
 |
 |
||||||||
 |
 |
|
 |
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
 |

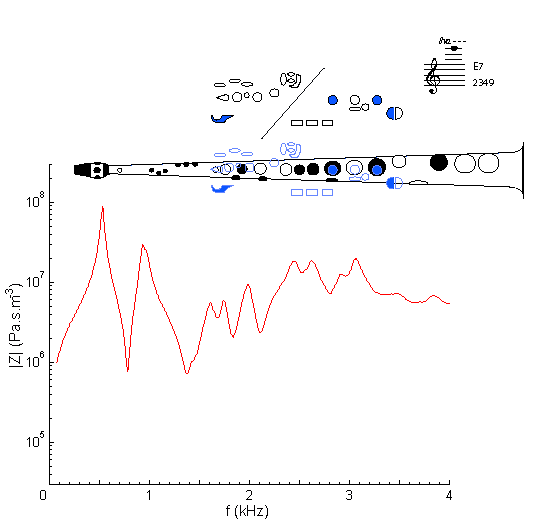

Fingering Acoustic schematic Non-specialist introduction
to acoustic impedance Notes are the written pitch. |
Sound spectrum
of a Bb soprano saxophone
played using fingering for E7.
For more explanation, see
Introduction to saxophone acoustics.
You can hear E7
played.
|
Contact:
Joe Wolfe
/ J.Wolfe@unsw.edu.au |
a key depressed
a key not depressed
a hole covered
a hole uncovered
a
part of the mechanism that is not normally touched
