Bb soprano saxophone
C5
| Acoustics of the saxophone |
Bb soprano saxophone |
C5 |
|
 |
 |
 |
 |
||||||||
 |
 |
|
 |
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
 |
Fingering Acoustic schematic Non-specialist introduction
to acoustic impedance Notes are the written pitch. |

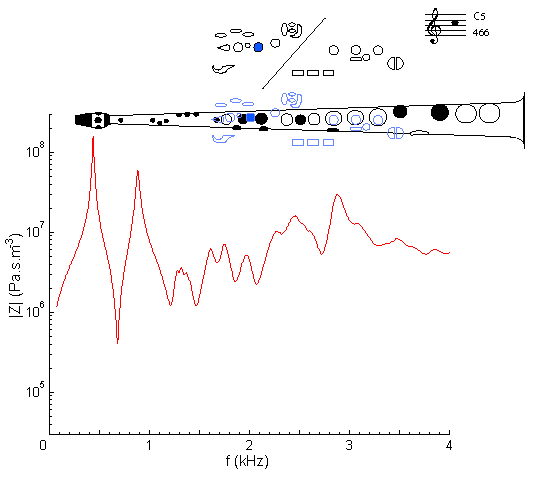

At frequencies below about 1 kHz, this curve looks rather like that for B4, but raised in frequency. At higher frequencies, however, the situation is complicated by the cut-off frequency. Here we have only two peaks that fall in the harmonic series: this fingering will bugle an octave, but no other note in the series. Above this frequency, the spacing of peaks in the upper part of the curve roughly equals that in the curve for the lowest note, A#3. This is because, at high frequency, the wave propagates past the open tone holes, reflecting only at the bell.
For general comments about the first register, see A#3. Compare with the impedance spectrum for a tenor sax on written C5: same fingering but sounding one octave lower.

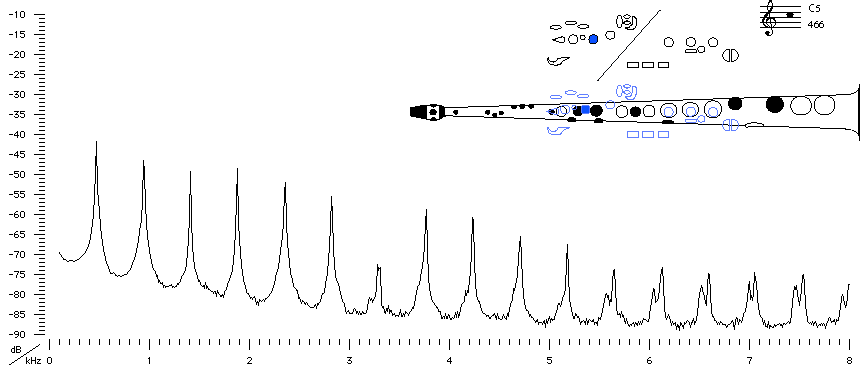

Sound spectrum
of a Bb soprano saxophone
played using fingering for C5.
For more explanation, see
Introduction to saxophone acoustics test
You can hear C5 played.

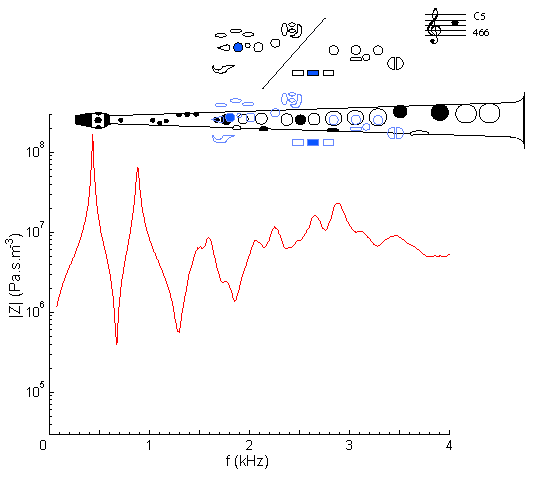

Alternative Fingering |
Bb soprano saxophone |
 |
Fingering Acoustic schematic Non-specialist introduction
to acoustic impedance Notes are the written pitch. |

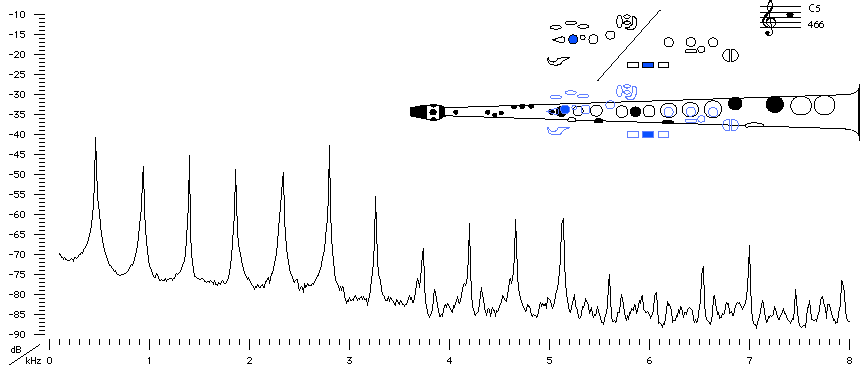

You can hear C5
played with alternative fingering.
|
